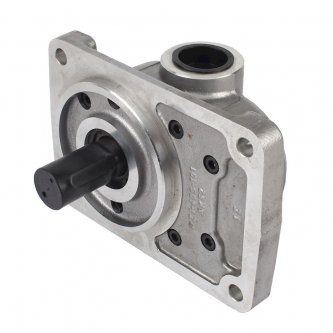

Hydraulic pump, replacement for PZ1-40
Product code 2016231
Availability: Currently not available
Product features:
Description - OIL PUMP PZ 1-40S APPLICATION: ROAD GRADERS GEAR BOXES U-35
Currency | Rate | |
---|---|---|
Purchase | Sale | |
EUR | 4,2473 | 4,3331 |
USD | 3,946 | 4,0258 |
*Tabela C NBP | ||
EUR | 4,0985 | 4,4757 |
USD | 3,8026 | 4,1526 |
*BNP Paribas |
Availability: Currently not available
Product features:
Description - OIL PUMP PZ 1-40S APPLICATION: ROAD GRADERS GEAR BOXES U-35
Hydraulic pump, replacement for PZ1-40
Availability: Currently not available
Description - OIL PUMP PZ 1-40S APPLICATION: ROAD GRADERS GEAR BOXES U-35
net: 1200,00 PLN
Availability: Currently not available
Product features:
Working volume - 36 cm3/rev
Max. working pressure (continuous) - 260 bar
Flange type - 98.4/128mm, 4 screws
Centering diameter - 50.8mm
Roller type - Conical 1:8
Pump type - Toothed
Description - Gear pump gr. 3 Equivalent to the HPGPA336D32E7E5B00 pump. European-type flange, mounted with 4 screws. Spacing of mounting screws: 98.4/128 mm. Cone-type shaft 1:8.
Hydraulic gear pump replacement HPGPA336D32E7E5B00
Availability: Currently not available
Working volume - 36 cm3/rev
Max. working pressure (continuous) - 260 bar
Flange type - 98.4/128mm, 4 screws
Centering diameter - 50.8mm
Roller type - Conical 1:8
Pump type - Toothed
Description - Gear pump gr. 3 Equivalent to the HPGPA336D32E7E5B00 pump. European-type flange, mounted with 4 screws. Spacing of mounting screws: 98.4/128 mm. Cone-type shaft 1:8.
net: 1214,29 PLN
Availability: Currently not available
Product features:
Working volume - 50 cm3 / rev
Turning direction - Left
Max. working pressure (continuous) - 230 bar
Availability: Currently not available
Working volume - 50 cm3 / rev
Turning direction - Left
Max. working pressure (continuous) - 230 bar
net: 828,57 PLN
Availability: Currently not available
Product features:
Working volume - 14+11 cm3/rev
Flange type - SAE-A
Centering diameter - 82.5mm
Roller type - Spline - 9 teeth
Pump type - Double gear
Description - 2-section hydraulic gear pump, thickness II Splined shaft SAE A 9 teeth SAE A flange mounted with 2 screws Spacing of mounting screws 106.4 mm Connections: suction 3/4" pressure 1/2"
Comparison code - MPLD/G214S, MPLD/G211S
Gear pump replacement for Bondioli MPLD/G214S
Availability: Currently not available
Working volume - 14+11 cm3/rev
Flange type - SAE-A
Centering diameter - 82.5mm
Roller type - Spline - 9 teeth
Pump type - Double gear
Description - 2-section hydraulic gear pump, thickness II Splined shaft SAE A 9 teeth SAE A flange mounted with 2 screws Spacing of mounting screws 106.4 mm Connections: suction 3/4" pressure 1/2"
Comparison code - MPLD/G214S, MPLD/G211S
net: 1400,00 PLN
Availability: Currently not available
Product features:
Working volume - 22.1 cm3/rev
Turning direction - Right
Max. working pressure (continuous) - 250 bar
Flange type - SAE-B
Centering diameter - 101.6mm
Roller type - Spline - 13 teeth
Pump type - Toothed
Description - Hydraulic pump thickness III Equivalent to the Sauer Danfoss SNP3/22DSC 7C pump
Comparison code - SNP3/22DSC 7C
Hydraulic gear pump 22 cm3/rev 250 bar
Availability: Currently not available
Working volume - 22.1 cm3/rev
Turning direction - Right
Max. working pressure (continuous) - 250 bar
Flange type - SAE-B
Centering diameter - 101.6mm
Roller type - Spline - 13 teeth
Pump type - Toothed
Description - Hydraulic pump thickness III Equivalent to the Sauer Danfoss SNP3/22DSC 7C pump
Comparison code - SNP3/22DSC 7C
net: 1400,00 PLN
Availability: Currently not available
Product features:
Working volume - 3.73 cm3/rev
Turning direction - Right
Flange type - 71.9/52.4mm, 4 screws
Centering diameter - 25.4mm
Roller type - Conical 1:5
Pump type - Toothed
Description - Hydraulic pump group I Equivalent to the HPLPA136DDG3G3B002165850 pump
Comparison code - HPLPA136DDG3G3B002165850
Hydraulic gear pump replacement HPLPA136DDG3G3B002165850
Availability: Currently not available
Working volume - 3.73 cm3/rev
Turning direction - Right
Flange type - 71.9/52.4mm, 4 screws
Centering diameter - 25.4mm
Roller type - Conical 1:5
Pump type - Toothed
Description - Hydraulic pump group I Equivalent to the HPLPA136DDG3G3B002165850 pump
Comparison code - HPLPA136DDG3G3B002165850
net: 646,15 PLN
